Model No.: FF252A2S-14G
Knitting Product Type: Sweater
Knitting Style: Flat
Knitting Method: Double
Needle Style: Compound Needle
Needle Bar Style: Flatbed Knitting Machine
Certification: ISO9001: 2000
Packaging: Wooden Case
Productivity: 1500 Sets/Month
Place of Origin: China
HS Code: 84472020

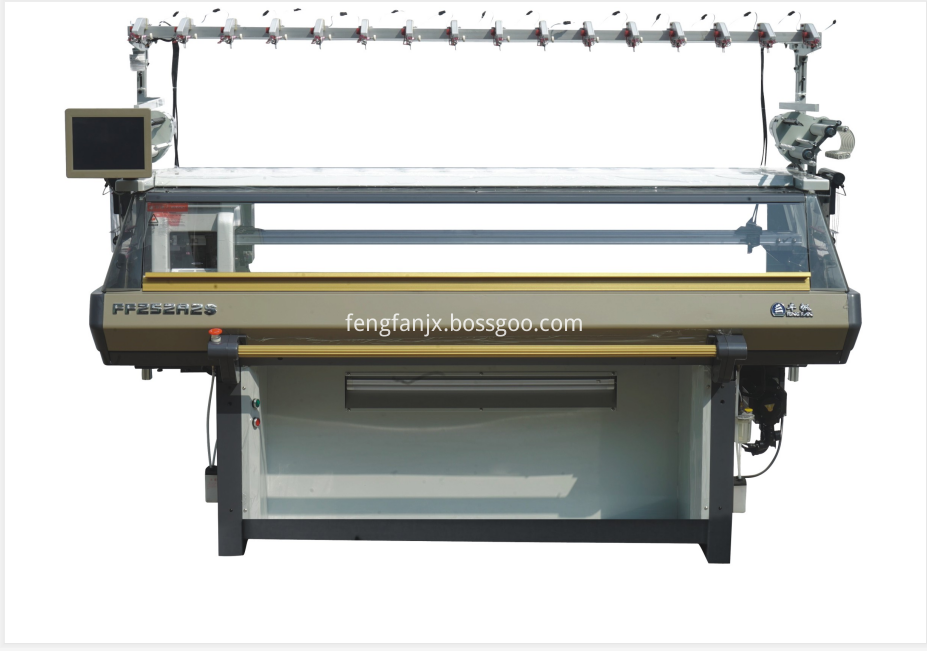

Computerized Flat Knitting Machine For Sweater
1.Take the LCD disply, graphics disply,transfeerred throough USB and internet,the memory is 4 M, can save a lot of files synchronously, and can use it complying with the request freely.
2..Monitoring of picture:Can show different parameters shifting Chinese and Engllish and can adjust theruning machine tomake operation easier.
3.Plate making system and controlling system (section of software) is easy to be oberved, understood and upgraded.
4.Power supply:single phase:220V/triple phase ;280V, advanced CMOS technology, have memory when the power is cut off.
Knitting system single head double system,single head three system
Gauge 12G, 14G，16G
Knitting range 36,40,48,52,56,60,72Inch
Knitting speed It adopts 24 segments with the maximum speed of 1.5m/s. AC servo motor control is adopted and controlled by refined feedback control and DSP with high-speed computation capability, for the purpose of controlling the IGBT to generate precise current output.
Needle bed shifting AC servo motor control is adopted with the needle shifting range realizing 2 inches; in the meantime, it is of precise fine tuning functions.
Yarn feed device Positive yarn feeder and guide wheel with standard configuration has greatly reduced the resistance of yarn feeding.
Power single phase 220V/three phase 380V; it adopts the advanced CMOS technology to memorize and recover at the moment of power cut.
Computerized Flat Knitting Machine For Sweater is able to knit the basic knitting organizations (full needle,single side etc), multicolour random jacquard weave, applique(intarsia), twist knitting, pointelle and other weft knitting organizations. It is applicable for real silk, spun silk, synthetic, wool, acrylic, blended, yarn and other raw materials toknit the sweater and scarf, cap, trousers,socks and garment accessories.
1.Adopt the latest A8 high-speed processor, to bring you unparalleled operational experience；
2.LCD industrial display is adopted in the screen, and USB and internet are used as transmission modes. Users can save a great deal of pattern documents and use from time to time in line with the production requirements；
3.Monitoring screen: it is able to display all knids of working parameters and the numerical value for the knitting lines. Meanwhile, it adjusts from time to time at the moment of machine running; therefore it can maximally operate and save time；
4.Platemaking system and control system are researched and developed independently; the software, as the free configuration, can be upgraded conveniently；
5.Multi-Language operation versions: it supports Chinese, English and other languages; meanwhile it can set other required languages as per the customers' requirements；
6.Support design colour code tight tuck 2, support contiguous and multi piece knitted. Stitch can fine adjust seperately and edge correction；
7.Support the function of current detection , provide a warm reminder for maintenance personnel to quickly identify the fault source；
8.Batching system：Computer programs command, stepper motor control,24 segments tension selection. It is able to select the moment of force to assist the roller for the purpose of providing effective tensile force for thick piece of clothes；
9.Support the automatic correction of transfer stitch value, can avoid yarn broken and missed stitch when do tighter knitwear, improved qualification rate of knitwear.
